Home Products YD-H1800R5 Small format uv hybrid printer

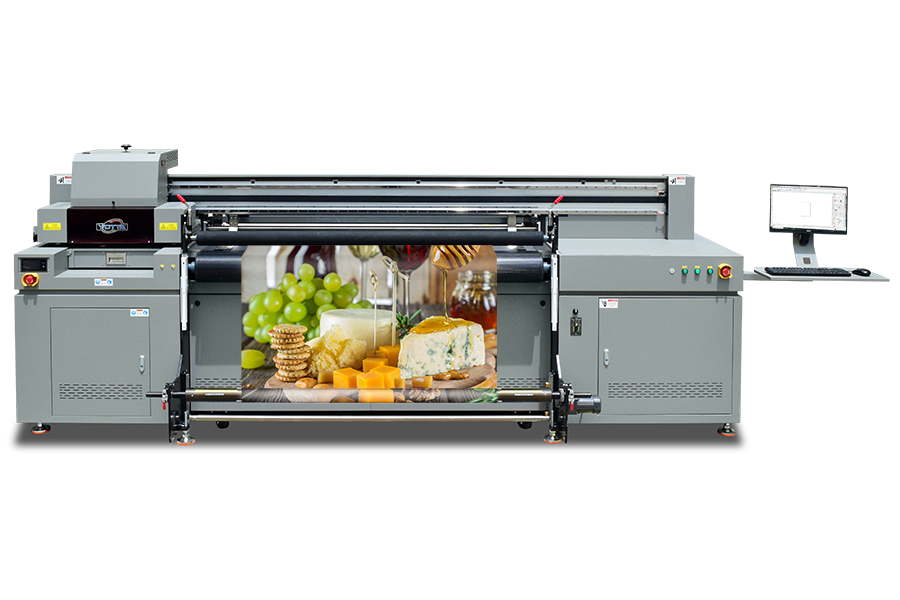

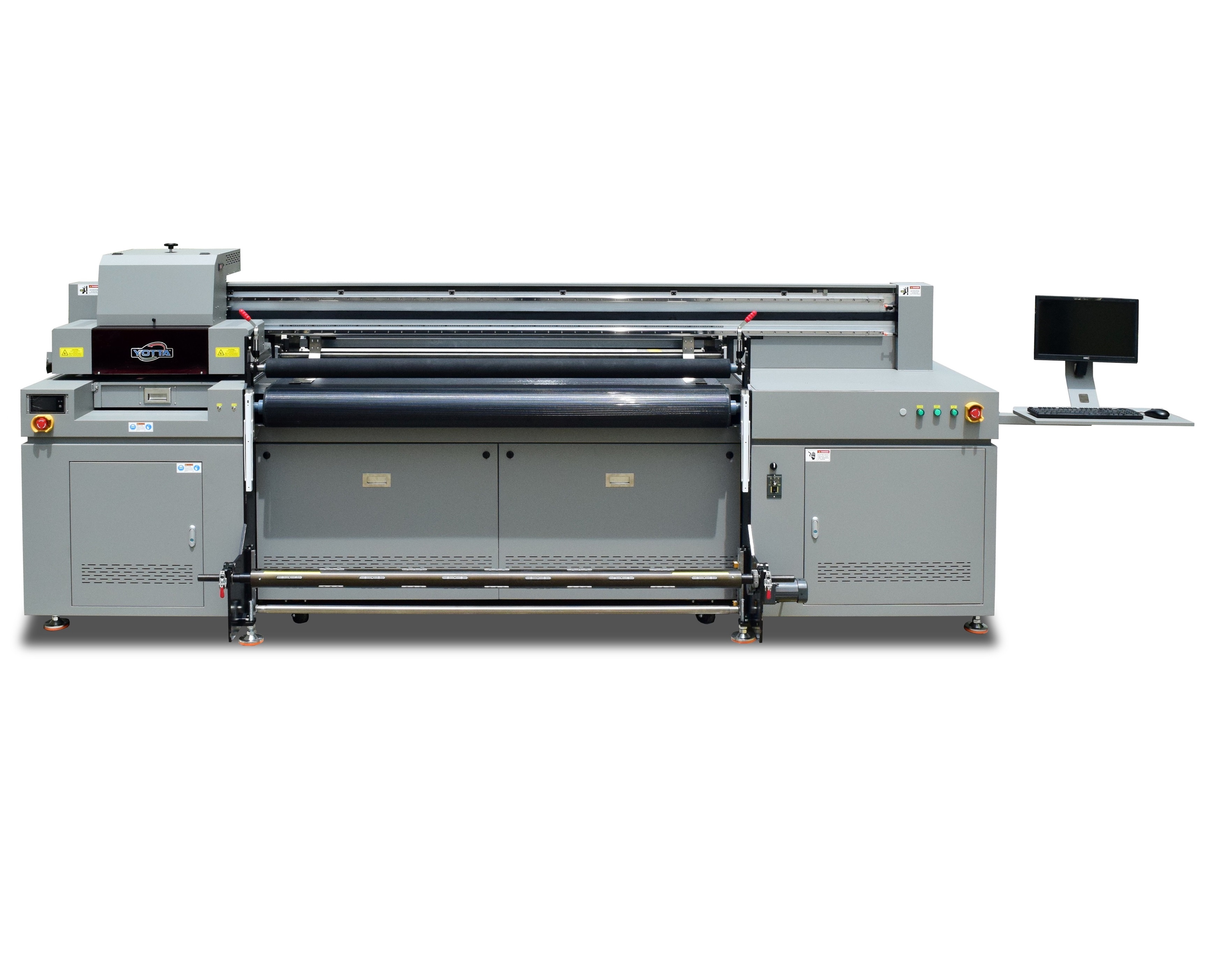

YD-H1800R5 Small format uv hybrid printer

  • A combination of uv flatbed and roll to roll printer, print rigid and flexible media with fast speed.
  • Small format printing, 1800mm maximum print width.
  • Two kind of printheads optional: Ricoh Gen5/GEN6 or Kyocera KJ4A printhead.
  • Eco-friendly UV ink and full-color printing: CMYK+ LcLm, white ink or Varnish.
  • LED UV curing system, high resolution 600*2400dpi.



Category: Hybrid Printers
  • Description
  • Specifications

Description

Application and Printing materials:

YOTTA’s YD-H1800R5 small format uv hybrid printer adopts Ricoh Gen5 print head (Ricoh GEN6 and Kyocera KJ4A print head optional), fast speed and high resolution are its prominent advantages. It’s able to increase print head according to customer requirement, which can enhance the performance of machine. Its highest configuration is 12 print heads that can achieve printing of CMYK,LcLm+W+V. What’s more, it can print special effect of varnish. YOTTA’s YD-H1800R5 small format uv hybrid printer is more suitable for personalized customization and mass production. Furthermore, it is easy to operate by computer, which is very efficient and stable.

  • Decoration: ceramic, ceiling, window, door…
  • Advertisement: billboard, bulletin board, photo…
  • Packaging: box, carton, some special appearance…
uv printing on leather and ceiling

Special features of YOTTA's YD-H1800R5

1. Seamless Wire mesh belt

Polyester made belt, it can make a trace less printing effect when printing thin material like pvc film.

2. Lead rail

Lead rail, which is HIWIN from Taiwam, can make machine running stable and reduce noise during the running process. What is more. It is easy to maintain and its lifetime can keep ten years under normal working environment.

3. Germany IGUS towline

YD-H1800R5 small format uv hybrid printer is suitable to high speed, which can protect wires from abrasion and can prolong service life.Besides, It can work stably in a long time.

4. White Ink Circle and stir

White Ink is special and will subside so that it will affect printing color or will be easy to block print head. After installing this, white Ink can circle automatically. If there is sediment at ink box, stir can work auto to prevent ink sediment.

5. Automatic measurement system

This function can measure the distance between print head and materials that will reach the best printing effect. It is precision and also can save time that we measure materials thickness by ourselves. Besides, that can avoid damage caused by human mistakes.

6. Feeding and taking up system

Feeding and taking up systems all adopt torque motor, it can adjust the tension strength while printing depends on the material thickness, while printing different materials all has a reasonable torque value to ensure the printing quality.

7. Secondary ink cartridge thermostat

The printing temperature of print head is normally at 45-50℃. In winter or some cold places, the print head temperature gradually rises after machine is started, and finally reaches 45℃, which will takes time to preheat. With the device, it can be kept at around 45℃, and it can work normally after machine is started. And there is a temperature display to know the temperature of the current secondary ink cartridge.

8. Anti-static function

When printing material with static, ink will spray over and the printing effect won’t be good enough. With anti-static bar, it can remove the static from material for best printing effect.

9. Double negative pressure

Independent negative pressure system for White and color, making suitable individual viscosity and gravity for both of them, finally gets best printing result.

Specification



Model YD-H1800R5
Print Size 1800 mm (5.9 ft)
Print head Ricoh Gen5 or Kyocera KJ4A (4 pl)
Printhead Quantity 2-8 pcs (4-8 colors optional)
Print Resolution 600 × 2400 DPI
Material Thickness Up to 50 mm (2in)
UV Curing System LED UV lamp
Ink Type Original imported UV curable ink (NO VOC)
Ink Color C, M, Y, K, Lc, Lm, White ink, Varnish (optional)
Material Type Rigid and flexible flat materials, flexible roll to roll material
RIP Software Onyx
Color Management International standard ICC
Input Format Adobe Postscript Level 3, PDF, JPEG, TIFF, EPS, AI
Printer Weight 1700KG
Printer Size 4550mm[L] × 1350mm[W] × 1420mm[H] (14.9ft×4.4ft×4.9ft)
Package Size 4750mm[L] × 1550mm[W] × 1750mm[H] (15.6ft×5.1ft×5.7ft)
Power Requirement 220V/AC(±10%), 50/60 HZ, 6KW
Working Environment Separate, little sunlight, ventilated workshop, Temperature: 18℃~30℃(64℉~86℉); Humidity: 30%~70% (Non-condensing); Ventilation equipment: suggest overhead exhaust fan, displacement 600cfm.

Specifications

Model YD-H1800R5
Print Width 1800 mm (6 ft)
Printhead Ricoh Gen5/GEN5 and Kyocera KJ4A (4pl)
Printhead Quantity 2-8 pcs (4-8 colors optional)
Print Resolution 600 × 2400 dpi
Material Thickness Up to 50mm (2in)
UV Curing System LED UV lamp
Ink Type Eco-friendly UV curing ink (NO VOC)
Ink Color C, M, Y, K, Lc, Lm, White ink, Varnish (optional)
Material Type Rigid and flexible flat materials, flexible roll to roll material
RIP Software Onyx
Color Management International standard ICC
Input Format Adobe Postscript Level 3, PDF, JPEG, TIFF, EPS, AI
Printer Weight 1200KG
Printer Size 4550mm[L] × 1350mm[W] × 1420mm[H (14.9ft×4.4ft×4.7ft)
Package Size 4750mm[L] × 1550mm[W] × 1750mm[H] (15.6ft×5.1ft×5.7ft)
Power Requirement 220V/AC(±10%), 50/60 HZ, 6KW
Working Environment Separate, little sunlight, ventilated workshop, Temperature: 18℃~30℃(64℉~86℉); Humidity: 30%~70% (Non-condensing); Ventilation equipment: suggest overhead exhaust fan, displacement 600cfm.
