Home Products YD-S300 New High Speed Single Pass Printer

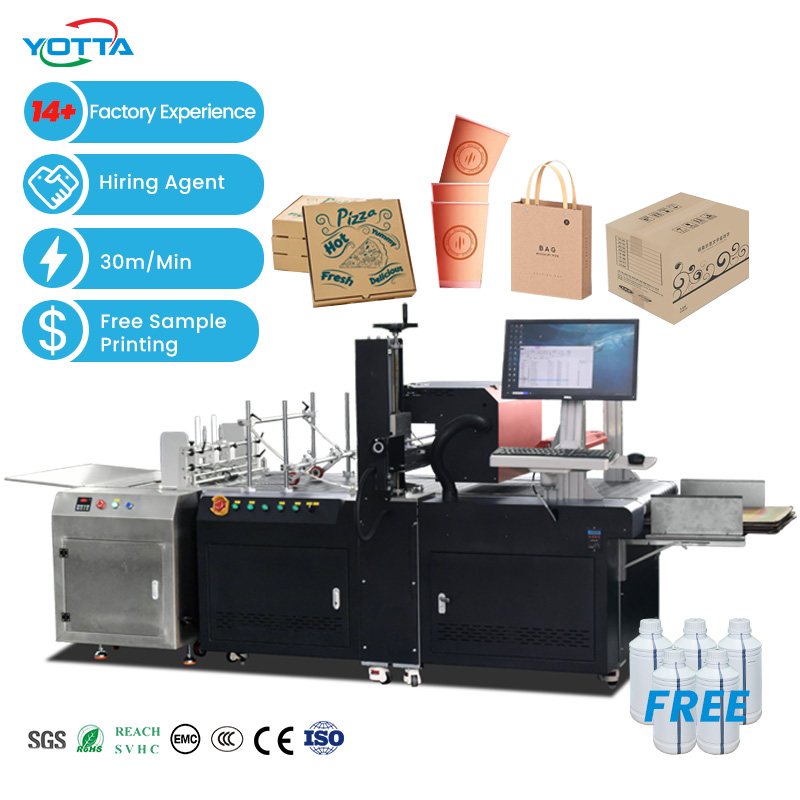

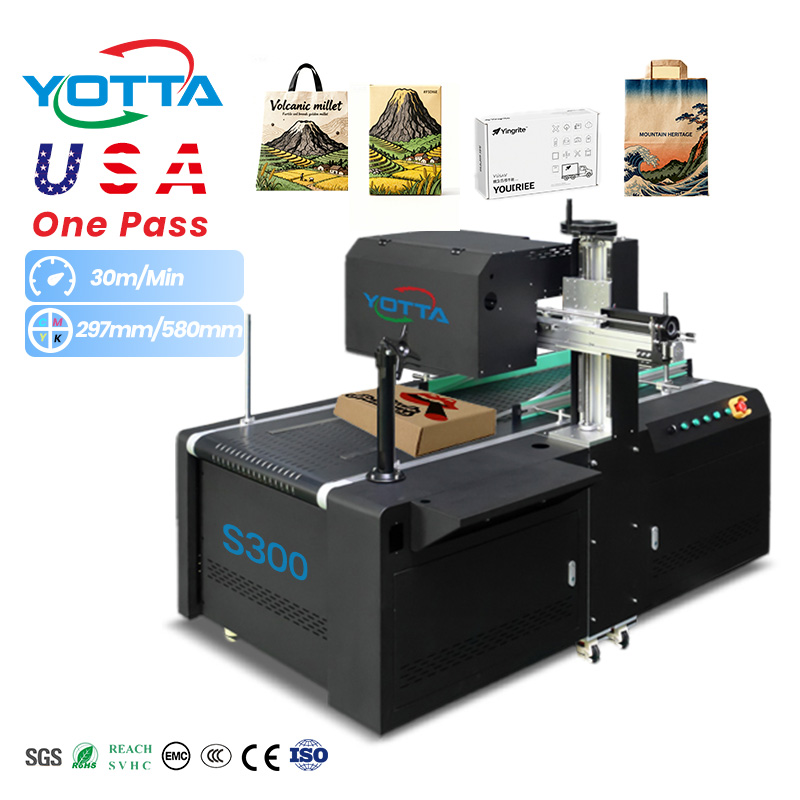

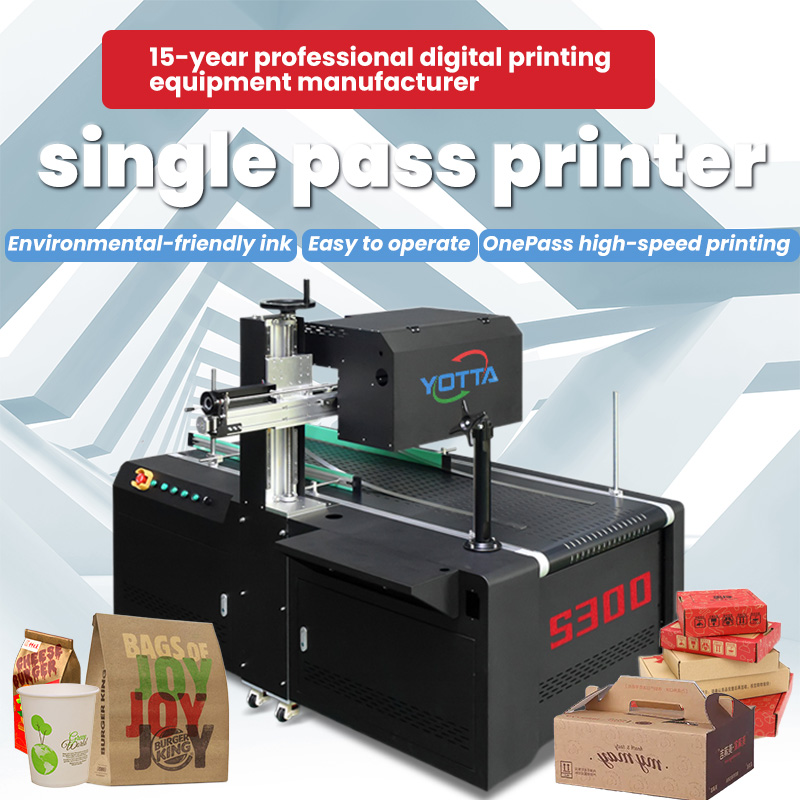

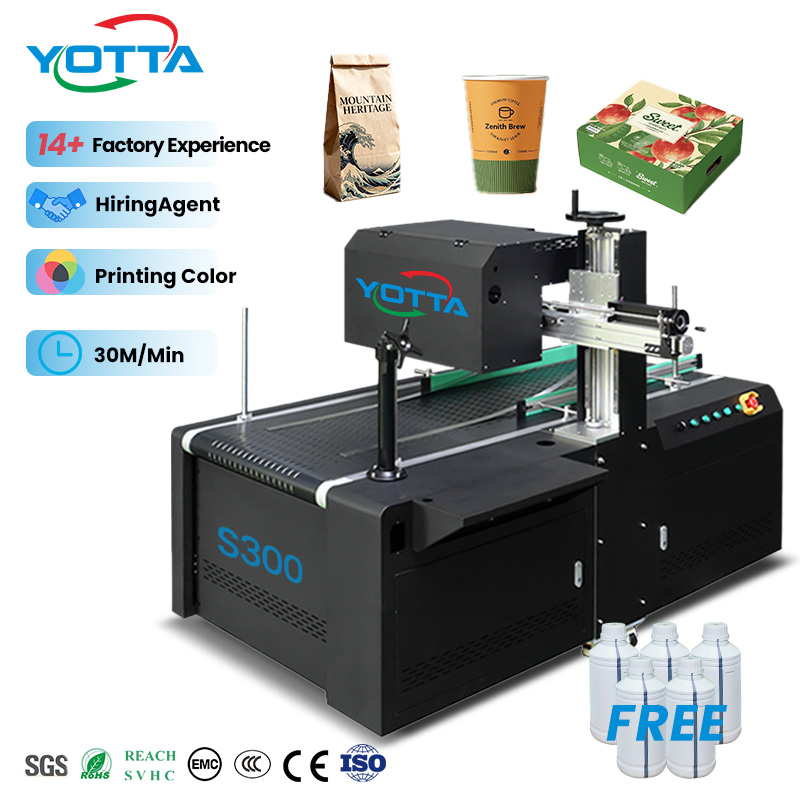

YD-S300 New High Speed Single Pass Printer

1.  Adopting HP industrial printhead.

2.  High speed printing function: pattern, QR code, bar code,  images etc.

3.  Wide applications and high print resolution of 1200 × 1200 DPI.

4.  Print C, M, Y, K 4colors.

5. Print material:corrugated boxes, craft paper,pizza boxes,cartons,handbags, packaging boxes etc.

6.  Cost-effective, Eco-friendly and Easy to operate.



Category: HIGH SPEED PRINTER Tags: One pass printer, Single pass printer
  • Description
  • Specification

Description

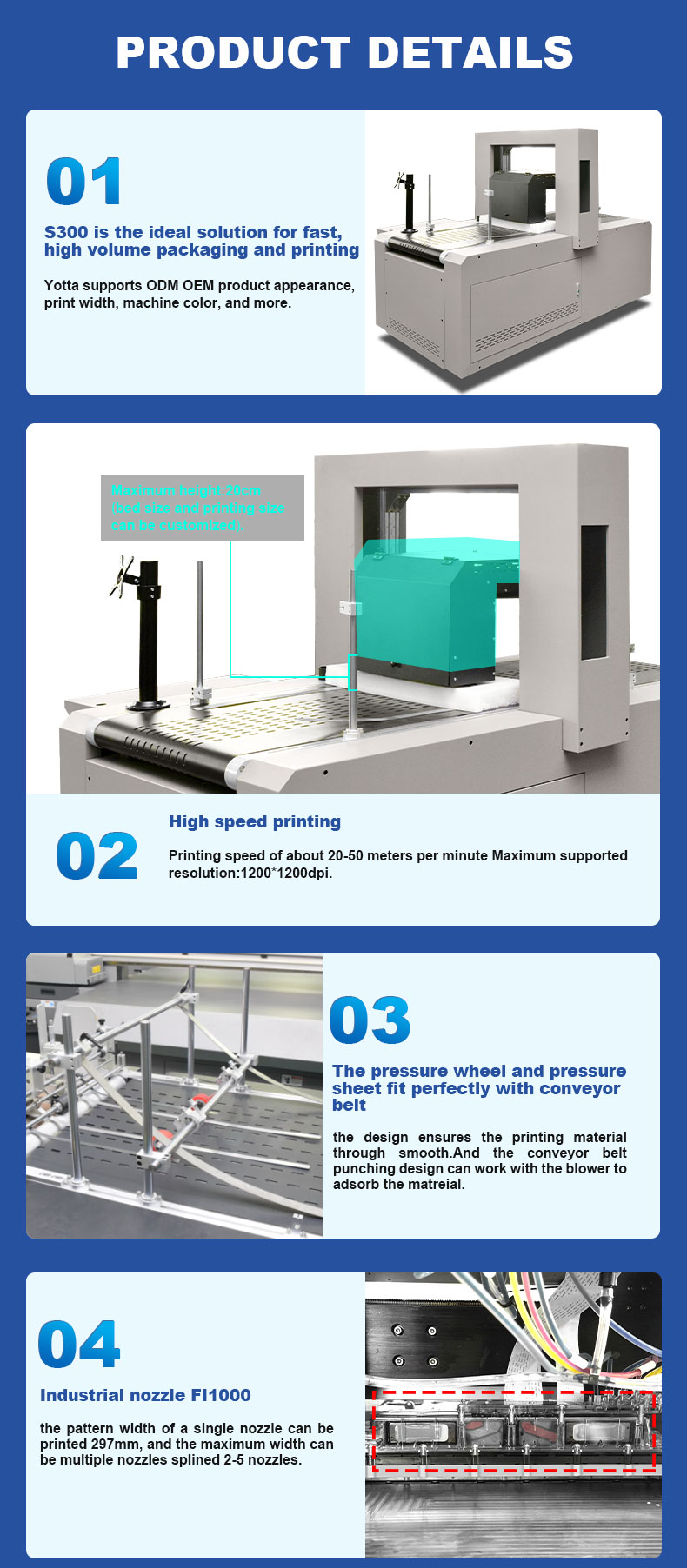

Main features:

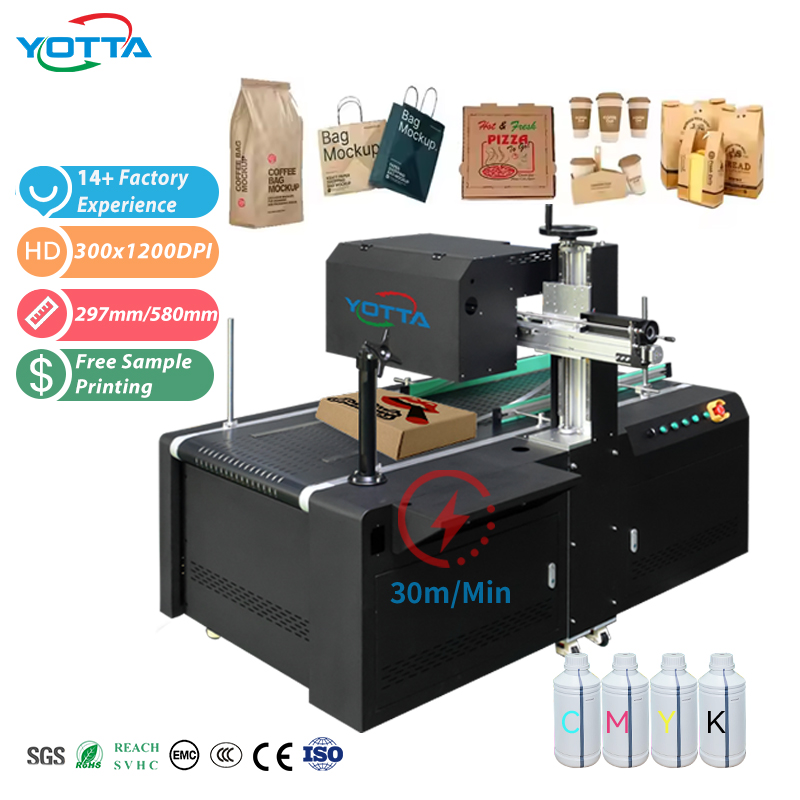

1.Using HP wide industrial printheads,single printhead can print width up to 297mm,support up to 2 heads,and the

width can reach 580mm.

2. Belt-guided continuous operation high-speed printing, 1-4 colors adjustable, up to 30 meters per minute.

3.Lightweight desktop design, easy to move, suitable for corrugated boxes, cartons, handbags, packaging boxes etc.

4.The sizes can be customized according to the demands of different manufacturers to meet the large and small batch

production, eliminating the complex platemaking process.

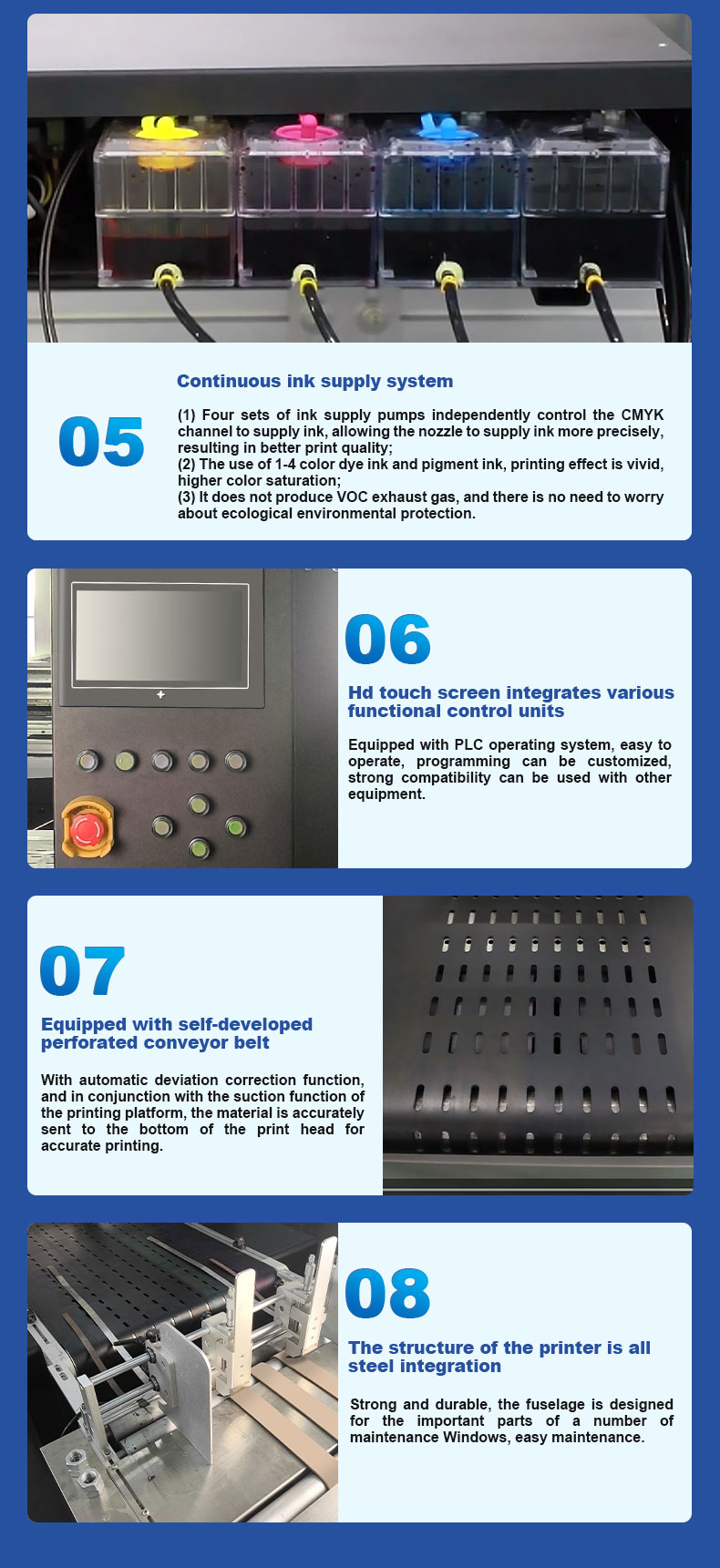

5.Using fast-drying water-based environmentally friendly ink, it dries immediately after printing, and the pattern is

waterproof and anti-fouling after printing.



Wide application:corrugated boxes, craft paper,pizza boxes,cartons,handbags, packaging boxes etc.

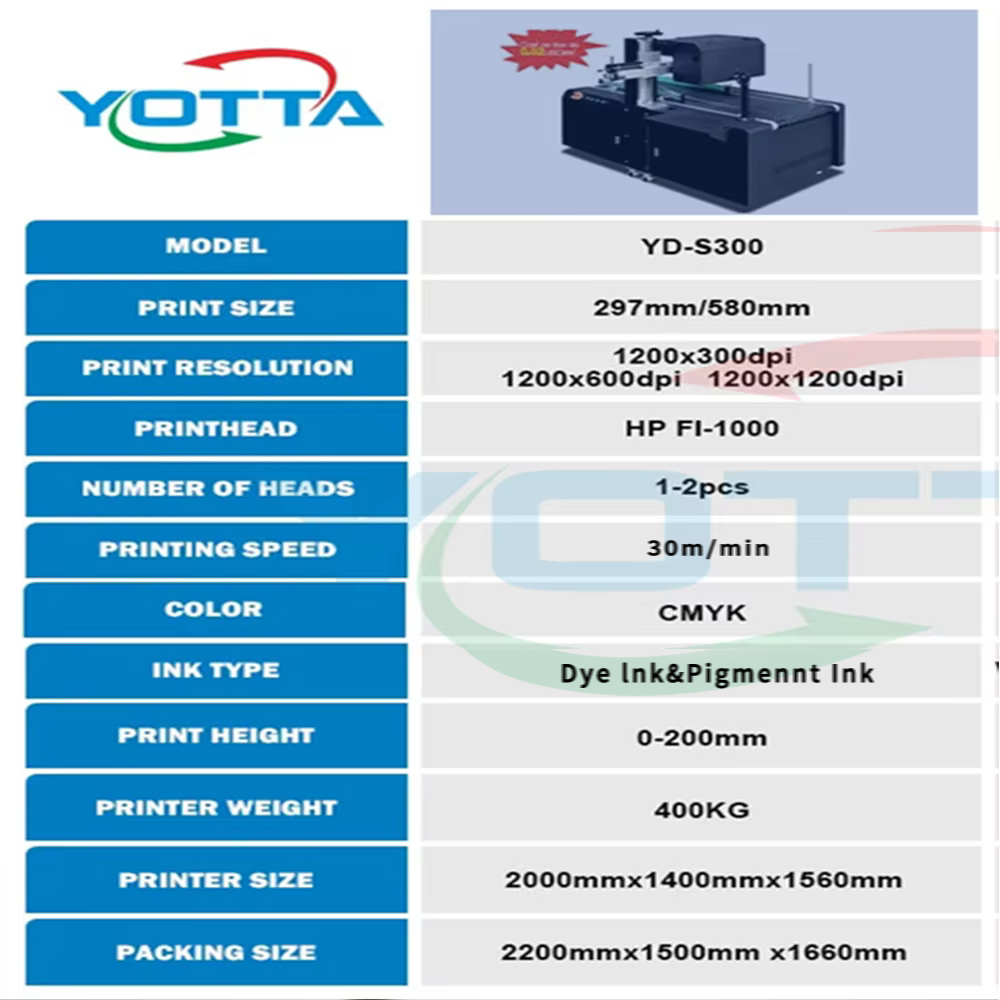

Specification

Model
YD-S300
Print Width
one head 297mm/2heads 580mm
Print Head
HP-FI-1000 Industrial print head
Print Resolution
1200*300 dpi,1200*600 dpi, 1200*1200 dpi
Print Speed
6-20m/min
Print Mode
one pass printing
Ink Color
C M Y K
Number of heads
1-2 pcs
Ink Type
Water-based Environmental Friendly Ink Pigment
Max bed Size
600mm
Material Thickness
0-200mm
Material Type
Rigid and flexible material
Material
Carton, Paper Boxes, Paper Boxes,corrugated board etc.
Date Interface
RJ45(Gigabit Ethernet Port)
X/Y Positioning  Mode
Software
Power Requirement
220V/AC (±10%),50Hz;1KW
Printer Weight
300KG

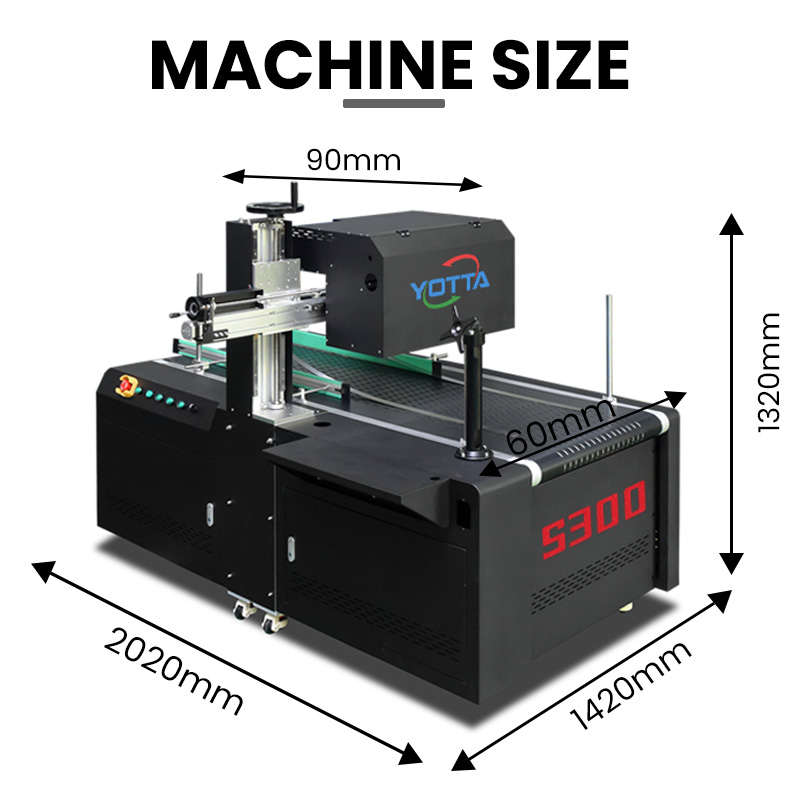

Printer Size
1950mm[L]*1250mm[W]*1500mm[H]
Working Environment
Separate,little sunlight,wentilated workshop.Temperature:18°C-30°C(64°F-86°F)Humidity:30%-70%(Non-Condensing)Ventilation equipment:Suggest Overhead exhaust fan,displacement 600 cfm
