Home Products YD-H3200R6 Large Format UV Hybrid Printer

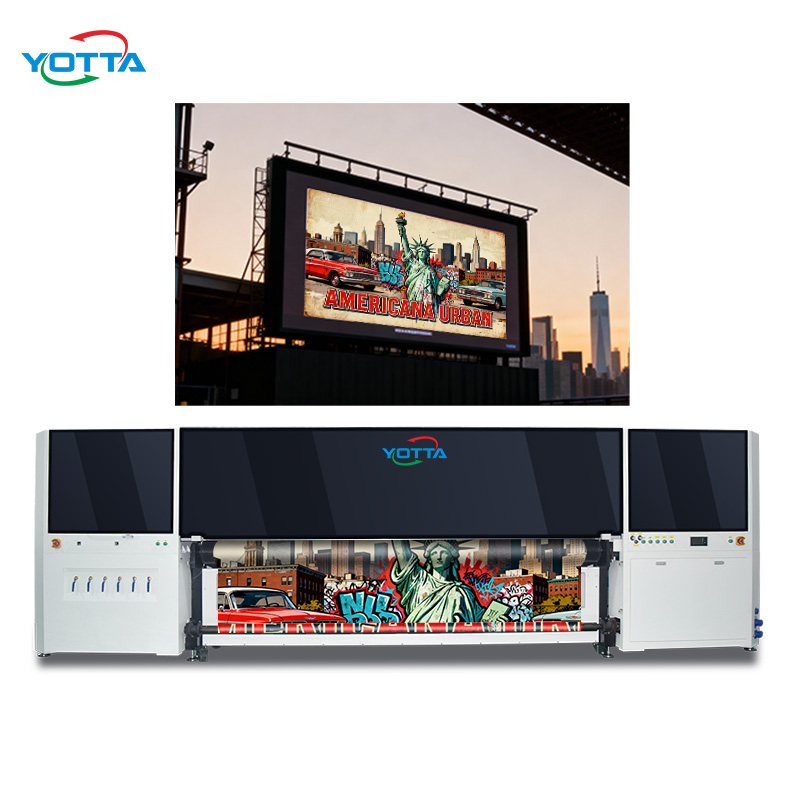

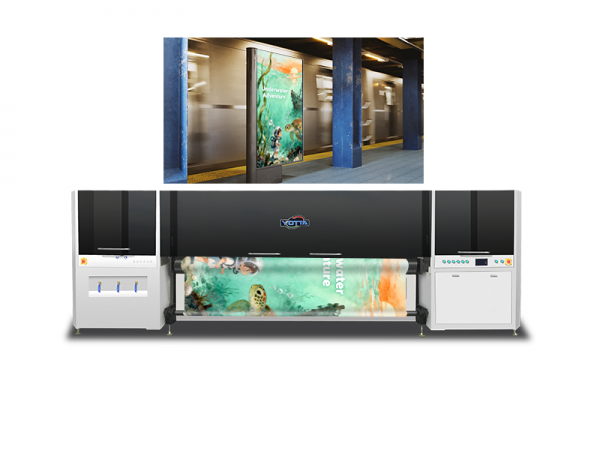

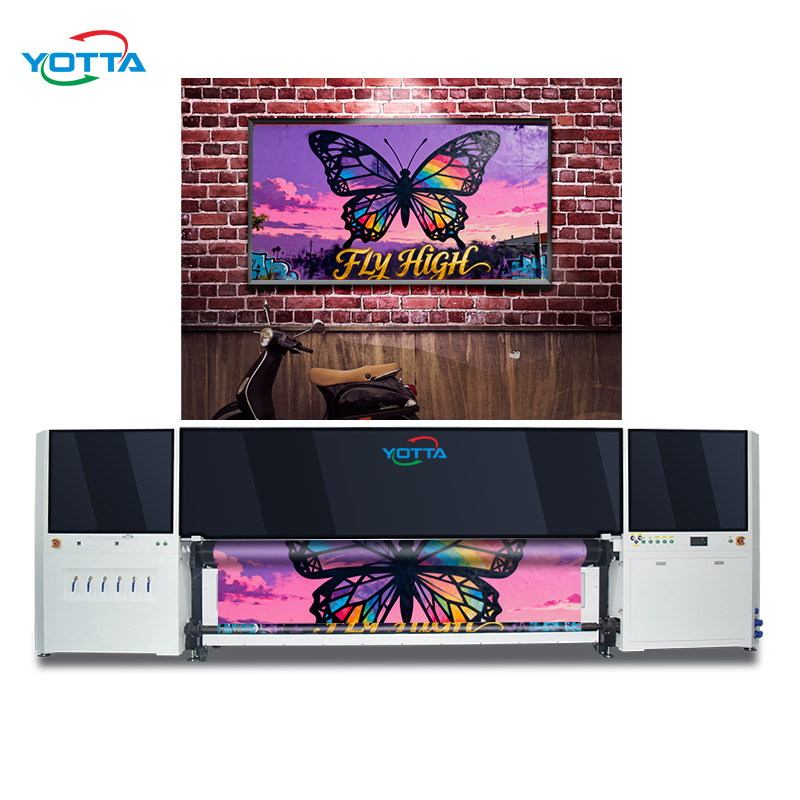

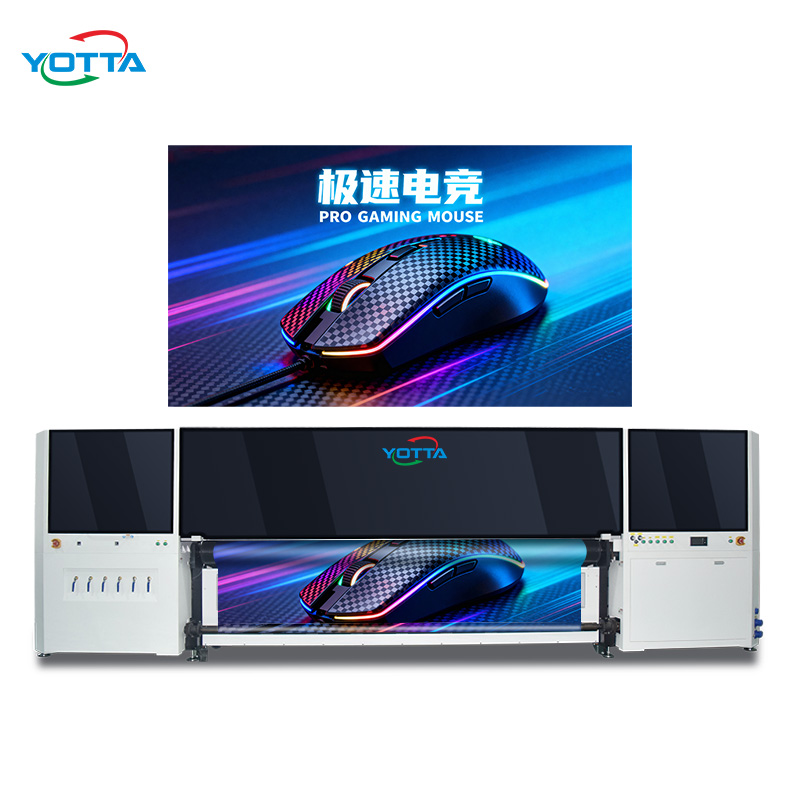

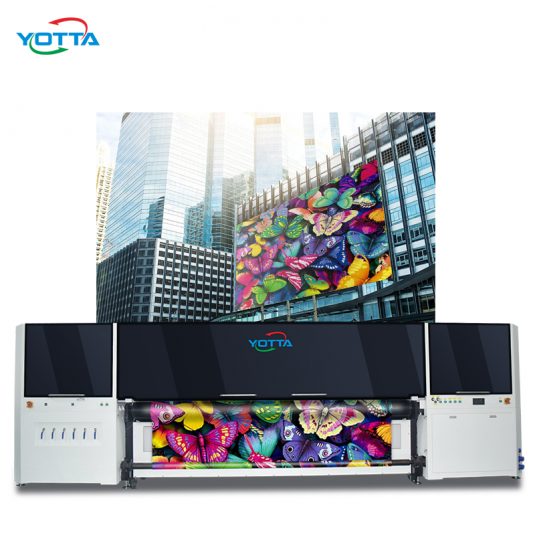

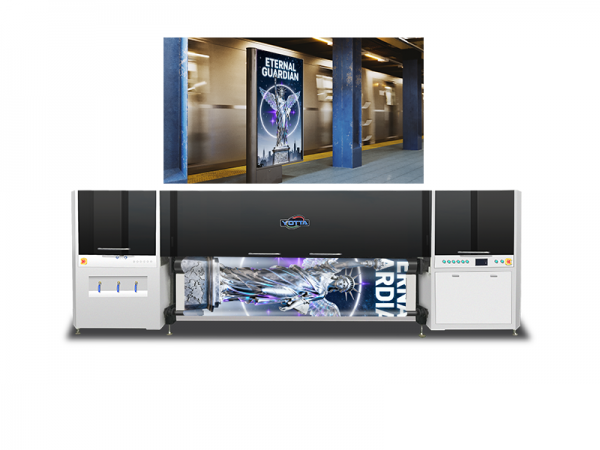

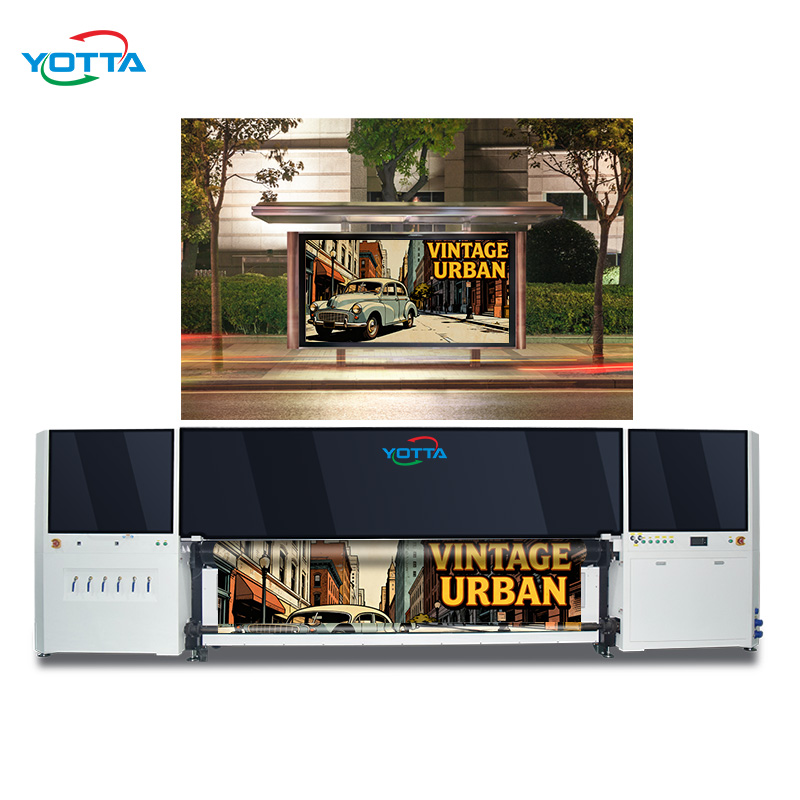

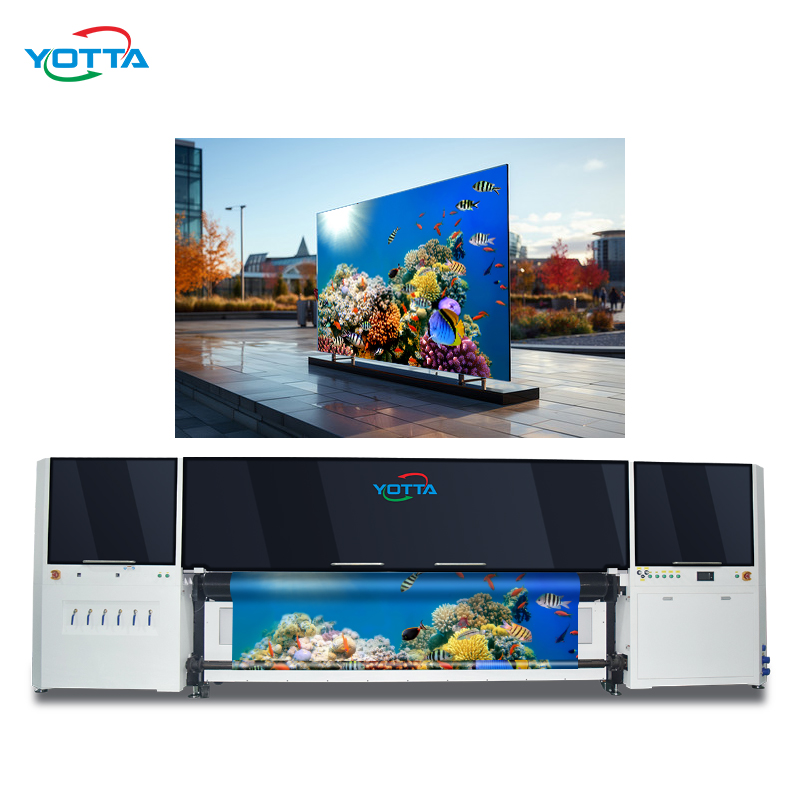

YD-H3200R6 Large Format UV Hybrid Printer

The YD-H3200R6 l

Category: Hybrid Printers Tags: Large Format Printers, Ricoh Head UV Printers
  • Description
  • Specifications

Description

Special features of YOTTA's YD-H3200R6

YD-H3200R6 Large Format UV Hybrid Printer: Good Performance & Multiple Functions

1. Fast Speed & High Accuracy
First of all, it uses Ricoh Gen6 print heads. Thus, it prints quickly. Besides, it also has a large size of 3200mm×1200mm. Moreover, its resolution can reach 2400×600DPI, so prints are clear and detailed.

2. Variable Ink Droplet Printing
This printer supports 5pl-15pl ink droplets. First, this feature makes colors transition naturally. Second, it also helps save ink. Ultimately, it’s good for both printing quality and cost control.

3. Dual Substrate Compatibility
As a hybrid printer, its key advantage is clear. That is, it can print on both coiled and flat materials. For businesses with many types of materials, it’s a cost-effective choice. Because you don’t need to buy separate machines.

4. Eco-Friendly UV Ink
It uses special UV ink with no VOCs. So, it’s very good for the environment. Meanwhile, this ink works with many materials. Thus, you can print directly on them without coating. Additionally, the ink dries fast, saving time.

5. Stable Negative Pressure System
It has a built-in negative pressure system. This system first makes ink flow smoothly. As a result, there’s no ink leakage during printing. What’s more, it further helps save ink.

6. Precise Constant Tension Control
This function is specially designed for roll-to-roll printing. Specifically, it can adjust tension accurately. In this way, materials won’t wrinkle while printing. Eventually, prints can stay flat and neat.

7. Efficient UV LED Curing
Last but not least, it has a UV LED curing system. The system works well, and it also has low heat and uses less energy. More importantly, it’s safe for heat-sensitive materials. Consequently, it can print on more different materials.


Previous
Next

Specifications

Model YD-H3200R6
Print Width 3200 mm (11 ft)
Printhead Ricoh GEN6 grey level Piezo print head
Printhead Quantity 2-12 pcs (4-8 colors optional)
Print Resolution 600×2400 dpi
Material Thickness Up to 50mm (2in)
UV Curing System LED UV lamp
Material Type Rigid and flexible flat materials, flexible roll to roll material
Ink Color C, M, Y, K, Lc, Lm, White ink, Varnish (optional)
Ink Type Eco-friendly UV curing ink (NO VOC)
RIP Software Photoprint/Onyx
Color Management International standard ICC
Input Format Adobe Postscript Level 3, PDF, JPEG, TIFF, EPS, AI
Printer Weight 2150KG
Printer Size 5800mm[L] × 1580mm[W] × 1530mm[H] (19ft×5.2ft×5ft)
Package Size 6000mm[L] × 1850mm[W] × 1930mm[H] (19.7ft×6ft×6.3ft)
Power Requirement 220 V/AC(±10%), 50/60 HZ; 8.5KW; (38A)
Working Environment Separate, little sunlight, ventilated workshop, Temperature: 18℃~30℃(64℉~86℉); Humidity: 30%~70% (Non-condensing); Ventilation equipment: suggest overhead exhaust fan, displacement 600cfm.
