Home Products YD-F2513R5-40 Heightening Flatbed UV Printer
YD-F2513R5-40 Heightening Flatbed UV Printer

YD-F2513R5-40 Heightening Flatbed UV Printer

Rare 0.4M ultra high print height;

2.5M×1.3M print size;

Ricoh Gen5 industrial printheads;

Fast full-color printing (4-8 colors optional);

UV LED curing technology

Category: UV Flatbed Printers
  • Description
  • Specifications

Description

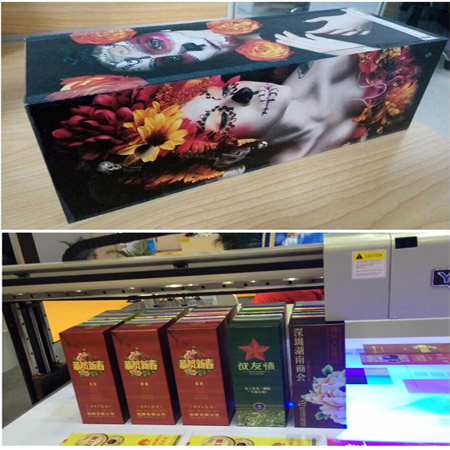

YOTTA YD-F2513R5-40 heightening flatbed uv printer is a upgraded heightening model with unparalleled 0.4M print height. Adopting high-end industrial Ricoh Gen5 printheads, this flatbed machine delivers 7pl-35pl variable ink droplet and 600×2400dpi printing, ideal for high resolution printing on various types of materials, especially for custom gift boxes production.

Direct printing on clinder metal. More about application videos: https://www.yottaprinter.com/videos

Advance Features of YOTTA YD-F2513R5-40 heightening flatbed uv printer

1. High quality & Excellent performance

All of YOTTA’s digital printers employ integrated temper-treatment stainless steel frame which is more tough and stable, no deform during transportation and use. Our printers are equipped with series of original high quality accessories to ensure high precision positioning, printing and strong performance. For instance, the printer palrform can bear 50kg per square.

2. Fast speed & high resolution

This heightening flatbed printer adopts 2-8pcs grey level Ricoh Gen5 internal heating micro piezo printheads, delivering 600×2400dpi high resolution printing. Even clear 2pt character can be printed out.

The jetting frequency is up to 60KHZ. YD-F2513R5-40 printer is installed Ricoh Gen5 industrial printheads. Three printing modes can be chosen by customers according to actual production requirements.

3. Quality guaranteed & long service life

We believe that quality is the soul of an enterprise. Therefore, we always put product quality first. We have strict quality management processes to control the storage of each accessory and the production of each printer. Meanwhile, we provide a year of warranty for each machine.

4. Wide applications

The YD-F2513R5-40 has a ultra high print height of 0.4M, which is rare in the entire printer market. In addition to print on materials with normal thickness, it is also ideal for custom boxes, book edges, kid’s tables & chairs, etc. Its application is more wider than the average digital UV printer.

5. User-friendly functions

This ultra high print YD-F2513R5-40 heightening flatbed uv printer is featured with lots of functions for easy and effective operation, including:

  • Practical and concise switching design;
  • Anti-collision device to protect carriage and printhead from damage;
  • Double Negative pressure system to deliver smoother ink supply;
  • Automatic height measurement system to detect the thickness of substrate automatically;
  • Four-zone independent control adsorption platform;
  • Convenient ink exchange design;
  • Blank area skipping printing function;
  • Multi-copy printing function.
  • White ink & varnish (transparent ink) printing.

6. Environment-friendly

Adopting Eco-friendly UV ink which is No Voc, and UV LED curing technology without excessive heat produced, it meets the requirements of all countries for green production and environmental protection. At the same time, protecting the health of the user.



Contact us now for more details.

Specifications

Model YD-F2513R5-40
Print Size 2500 × 1300 mm (8 × 4 ft)
Printhead Ricoh-Gen5 grey level Piezo print head
Printhead Quantity 2-8 pcs (4-8 colors optional)
Print Resolution 600×2400 DPI
Material Thickness Up to 400mm (16in)
UV Curing System LED UV lamp
Material Type Rigid and flexible material
Printing Material Glass, acrylic, wood, ceramic, metal, PVC, corrugated board, plastic, notebook, wine box etc.
Ink Type Eco-friendly UV curing ink (NO VOC)
Ink Color C, M, Y, K, Lc, Lm, White ink, Varnish  (optional)
Interface Mode High Speed USB
RIP Software Onyx
Color Management International standard ICC
Input Format Adobe Postscript Level 3, PDF, JPEG, TIFF, EPS, AI
Printer Weight 1350KG
Printer Size 4510mm[L]×2500mm[W] × 1400mm[H] (14.8ft×6.7ft×4.7ft)
Package Size 4700mm[L] × 2250mm[W] × 1730mm[H] (15.4ft×7.4ft×5.7ft)
Power Requirement 220V/AC(±10%), 50/60 HZ, 6KW
Working Environment Separate, little sunlight, ventilated workshop, Temperature: 18℃~30℃(64℉~86℉); Humidity: 30%~70% (Non-condensing); Ventilation equipment: suggest overhead exhaust fan, displacement 600cfm.
