Description
YD-P20R6 is a competitive digital UV flatbed printer using original imported Panasonic servo system, which makes it work stably and have long life time that more than 10 years. Adopting new 2-8 pcs grey level Ricoh Gen6 internal heating industrial micro Piezo print head, 4-8 colors are optional, printing solution is 600 x 2400dpi, ignition frequency is up to 50kHZ, which increases the amount of ink per unit time by 80% and reduces the printing time by up to 50% and improve the printing speed. It can ensure smooth ink jetting when uv printing. This machine has 8 colors options with 5-15pl variable droplet printing capability, making precise and intensive UV printing. It can print any flat materials that thickness are less then 130mm .
YD-P20R6 is our best-selling and the most popular styles of our uv machine, and it has a higher configuration. For example: large or wide format, print heightening (40 cm), and high speed with G6 Printhead…
What can you do with yotta's uv printers?
What do you want to do ?
In order to create beautiful designs, or start your own business and realize your ideals, or make money…, Whatever it is, keep doing it please!
what effect do you want?
The printing effect is clear and vivid, the image is waterproof, sunscreen, wear resistance and do not fade. The machine operation is simple and convenient, easy-to-use. The speed of printing image is so quikly that it fully conforms to the printing industry standard. Working stably and instant provision.
What should you do next?
First, inquiry us for more details. Second, you can request a free print samples. Third, welcome to visit and communicate with us in our company. Of course, you can also give us an order directly if you have known us well before.
Wide application:
Home decoration industry: ceramic tiles, individual furniture, backwall gound, cupboard, ceilings, home appliance panel…

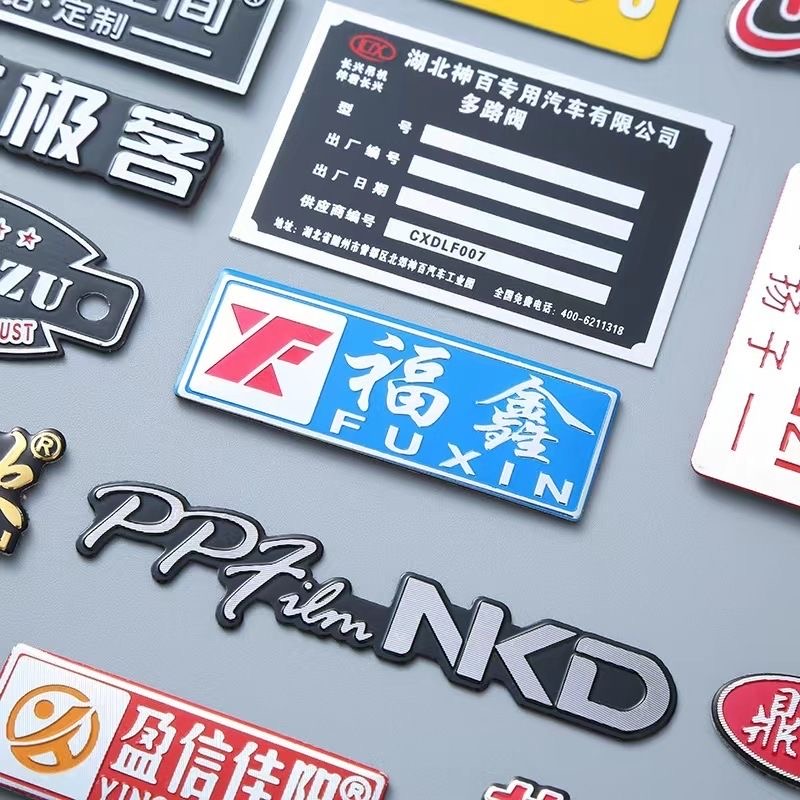

Advertising industry: poster, backlit, billboard, banner, PVC card, KT board, signage, PP board…
Glass industry: art glass, glass partition, glass sliding door, glass background wall, frosted glass…
Packaging industry: paper, wooden, metal, PVC, leather packaging printing…
……
Printing materials: glass, phone case, backwall ground, ceramic tiles… more details about free print samples, please contact us now.
Advance features of P20R6 new uv flatbed printers.
1. Ricoh Gen6 print head
Imported from Japan, Ricoh Gen6 print head is the high level print head in the industry. With the variable ink droplet range of 5-15pl, it’s highest print resolution is 600 × 2400dpi. Besides, the lifetime of Ricoh printhead can be longer than 5 years if it is well maintained.
2. Drawer type ink add device
YD-P20R6 digiatal UV flatbed printer adopts brand-new ink tank design, easy to use and maintain.
3. Automatic thickness measuring
YD-P20R6 digital uv flatbed printer automatically measure with senses thickness of media, which eliminate the procedure that we measure thickness by ourselves, avoiding damage caused by human error. It is very efficient and accurate.
4. Automatic anti-collision function
The new anti-collision structure is sensitive and pratical, when coming across with collision ,the print head carriage will stop automatically in order to protect printheads and the whole machine from damage.
5. The suction platform
The suction platform has an area-controlled suction function with six new ABCDEF areas, which use more flexible layout increased application surface for different formats of printing media.
6. New added ink tank level display system
Convenient to check the ink level of the main ink tank in a timely manner with integrating vision and hearing, which is convenient and practical.
7. Humanized auxiliary device
The operator can place printing materials at close distances for easy loading and unloading with a recessed tail design.
8. Double negative pressure system
Ultra-high stable dual negative pressure system, white varnish color independent negative pressure system to make the negative pressure more accurate.
9. X beam is upgraded
The X beam is upgraded to 20 guide rails and running more smoothly, the bearing capacity is doubled, and the running accuracy is higher.
10. UV LED curing system
YOTTA’s P20R6 employs UV LED light for ink curing system, can help ink dry quickly and save more energy. It is environmental, effective, and has a long using life.
