Home Products YD-F9060G5i small format UV flatbed printer

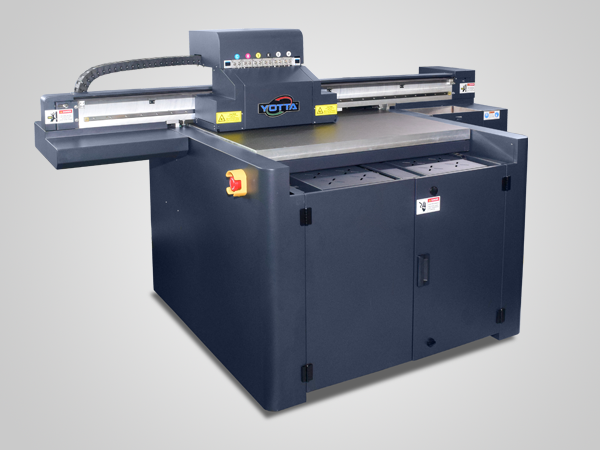

YD-F9060G5i small format UV flatbed printer

  • Adopting new 3 pcs grey level Ricoh GEN5i  industrial micro piezo print head;
  • Bright full-color printing on its 90cm×60cm bed.
  • Support printing of 0cm-35cm thick materials.
  • Print CMYK, white ink and varnish (optional).
  • Eco-friendly UV curing ink and UV led curing system.
  • Cylindrical print optional.
Category: UV Flatbed Printers Tags: 9060g5i, UV flatbed printer 9060
  • Description
  • Specification

Description

Adopting new 1-4 pcs grey level G5i internal heating industrial micro piezo print head, YOTTA YD-F9060G5i small format UV flatbed printer present bright full-color printing on its 90cm×60mm bed. It is featured with 3.5pl droplet printing, able to print high quality lifelike images with less ink consumption. With excellent print performance, it is a cost-effective solution for items with small size, such as phone cases, crafts, signs, wall panels, cylinders,etc, especially suitable for personalized printing business.

Materials can be printed by YD-F9060G5i small format UV flatbed printer:

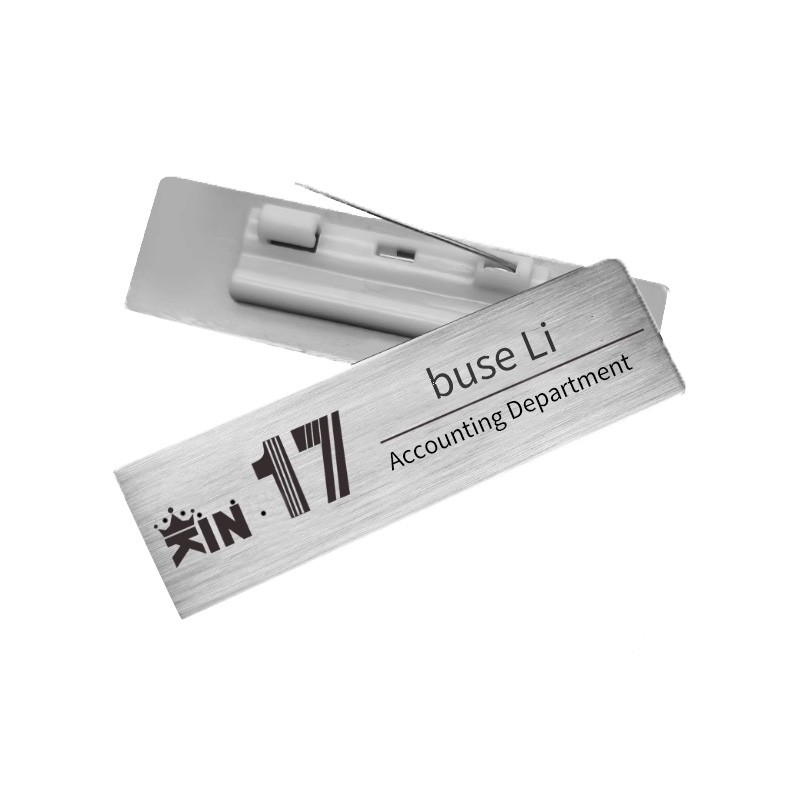

Glass, acrylic, wood, ceramic, metal board, PVC, plastic, corrugated board, leather, EVA, Cylinder,etc.

Advantages of YD-F9060G5i small format UV flatbed printer

Print Performance

  • Maximum 720×1200dpi high print resolution
  • Wide applications, can direct inkjet print on almost all flat material.
  • Capability of printing CMYK, Lc, Lm, white ink, and varnish, able to create 3D, embossed and high glossy effect. 3.5pl ink droplet printing, produce uniform color transition image with less ink consumption.
  • Efficient UV-LED ink curing technology.
  • Secondary ink cartridge negative pressure system presents more smooth ink supply and printing.
  • High-precision and tough accessories delivering more stable and reliable UV inkjet printing.



Employing high-end accessories

  • 3pcs industrial Ricoh G5i grey piezo inkjet printheads which is anti-corrosive and long-life with stable working performance.
  • Integrated steel frame structure which is more strong and stable. It is not deformed by collision.
  • Imported servo motor, high-precision linear guide and lead screw, achieve more accurate printing.
  • IGUS towline, cater for high speed movement. It can greatly reduce the wear of wire harness and prolong the life of wire harness, ensuring long-term stable and reliable working of the system.
  • Strong oxidation processed strong printing platform to avoid curing light reflection.



User-friendly function designs

  • Anti-collision device, carriage automatically stops when colliding with obstacles, so to protect printheads and human safety.
  • Automatic height measurement system to measure the thickness of substrates, more precise, time-saving and labor-saving.
  • Negative pressure system to make more smooth ink supply and avoid ink leaking.

Specification



Model YD-F9060G5i
Print head Ricoh-GEN5i grey level piezo print head(GH2220/Epson i3200 optional)
Printhead quantity 1-4 pcs (4-6 colors optional)
Print size 900mm×600mm (3×2ft)
Print thickness Up to 350mm (138in)
Print resolution 720 ×1200 dpi
Print speed mode High speed mode; Normal mode; High resolution mode
Print mode Unidirectional and bidirectional
Ink color C, M, Y, K, W, V (optional)
Ink type Eco-friendly UV curable ink (No VOC)
RIP software Photoprint
Input format Adobe PostscriptPDF, JPEG, TIFF, EPS, AI
Printer weight 500KG
Power requirement 220V/AC(±10%), 50/60 HZ, 1.5KW 6.8A
Printer size
2020mm*1420mm*1320mm
Package size
2300mm*1800mm*1750mm
Working environment Separate,little sunlight,ventilated workshop. Temperature: 18℃~30℃(64℉~86℉)

Humidity: 30%~70%(Non-condensing)

Ventilation equipment:Suggest Overhead exhaust fan,displacement 600 cfm
