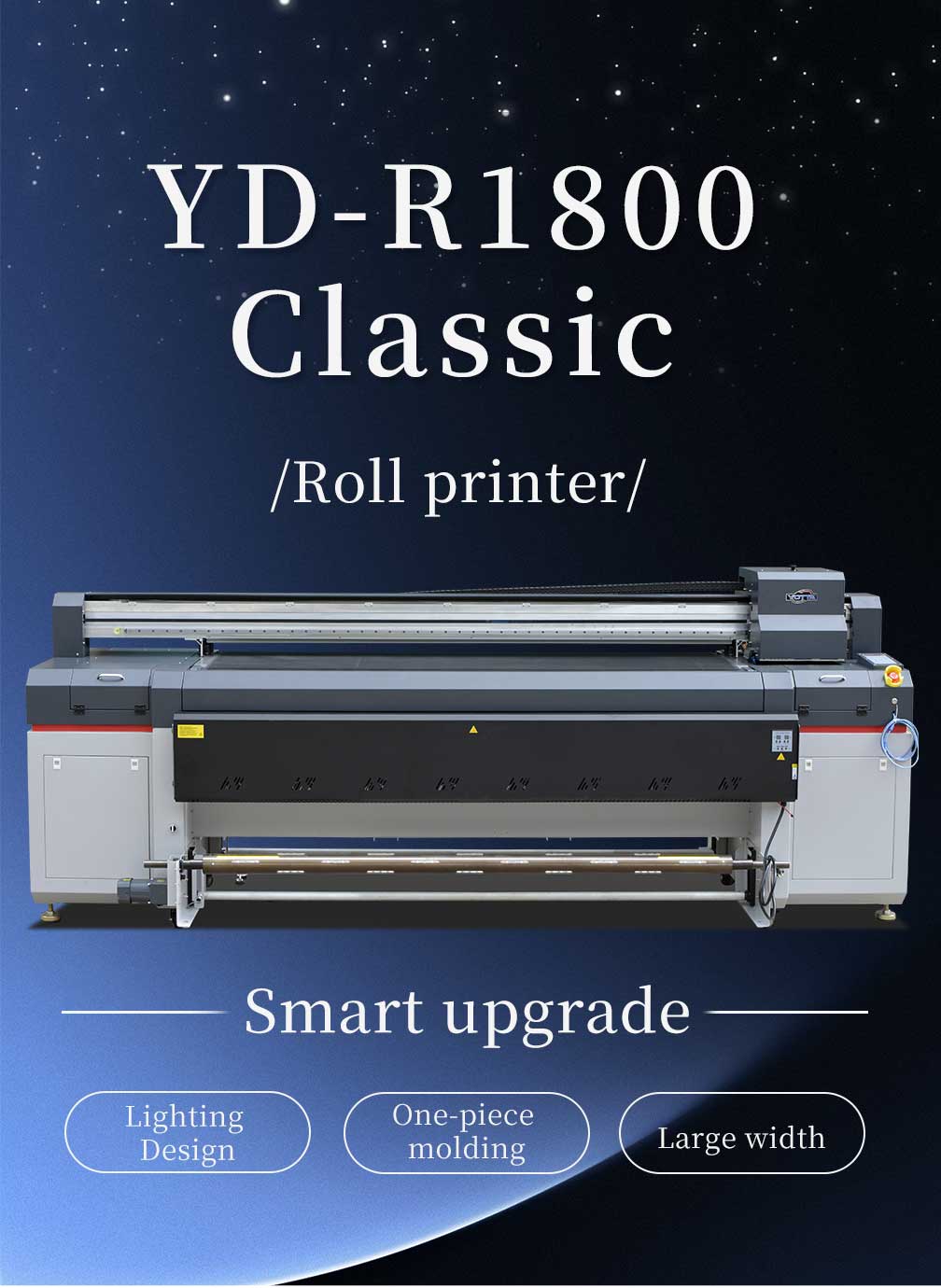

1.8m G6 uv roll to roll printer
RICOH Gen5, RICOH Gen6, and Kyocera Industrial Grayscale Piezoelectric Printheads Available:
Ink tank level display and alarm system, providing clear visibility of ink volume with low-ink warning to prevent printing interruptions.
Secondary ink cartridge with adjustable temperature control, suitable for varying climate conditions across regions.
Dual functionality for both roll-to-roll and rigid substrate printing, enabling multipurpose use and cost efficiency.
Dual pressure rollers (front and rear) ensuring stable and consistent printing on rigid materials.
Quick-release media support bracket for easy loading and placement of substrates; folds away swiftly when printing on roll media.

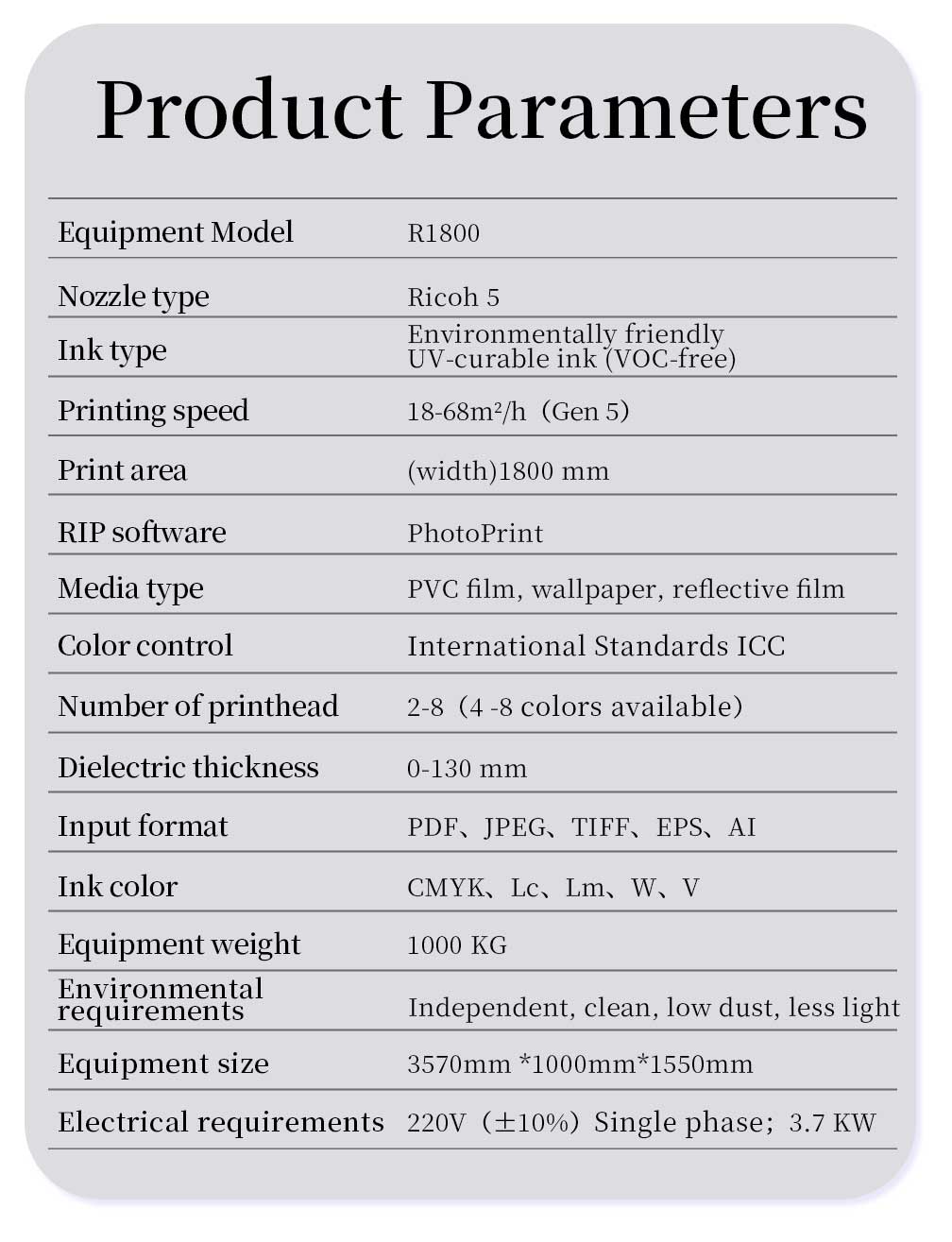

PRODUCT DETAILS
About Our Products
YD-R1800 roll to roll printer adopts a series of high-end accessories. With easy-to-use functions and humanized safety protection designs, it can save your time, simplify workflow and improve efficiency and productivity while maintaining the printing quality.
Features of YD-R1800 1.8m roll to roll UV printer
High print resolution

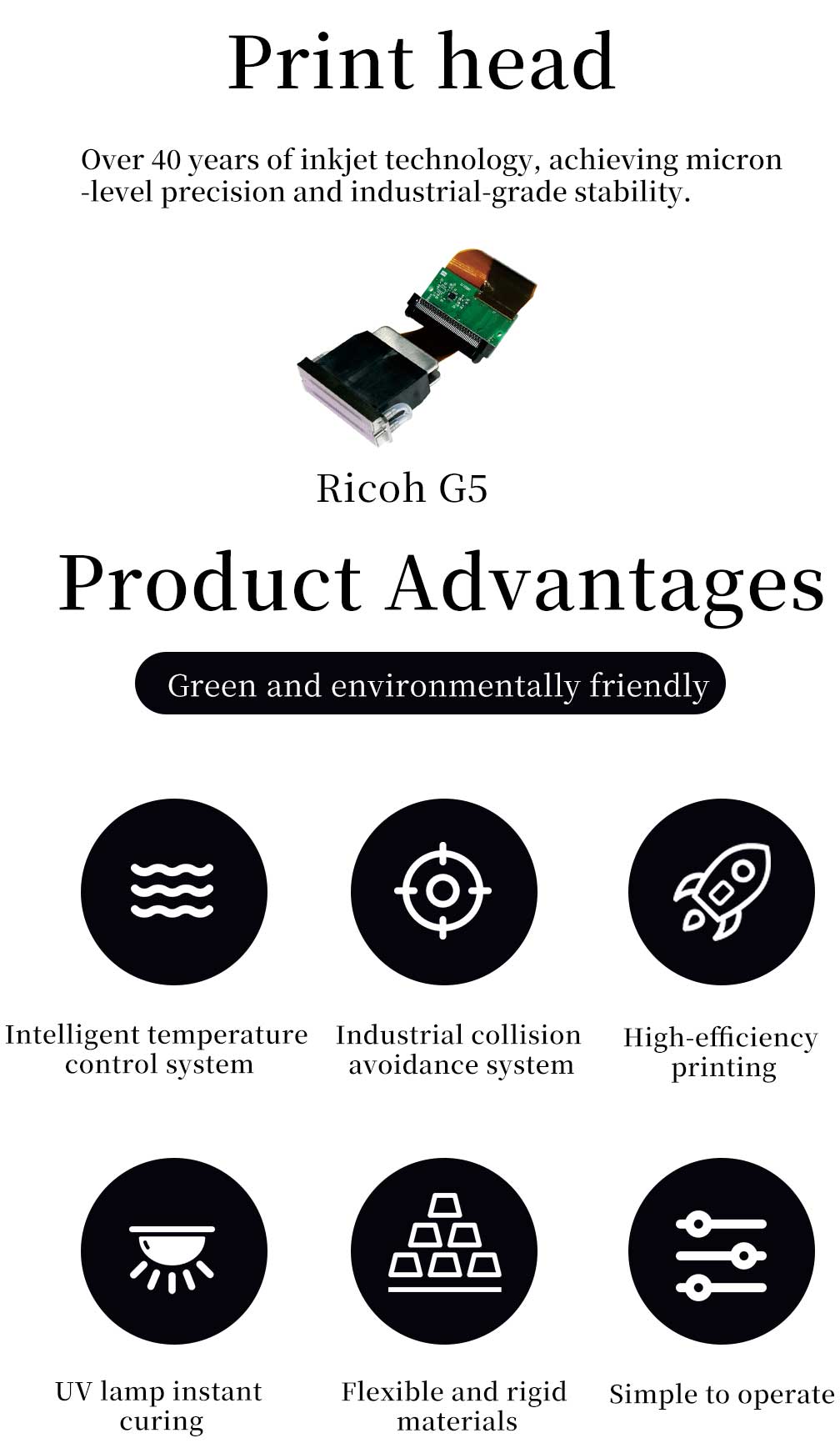

Adopting 2-8pcs Ricoh Gen5 industrial printheads featured 7pl-21pl variable ink droplet printing and capability of printing 2pt font clearly, this 1.8m YD-R1800 roll to roll uv printer presents high print resolution of 600×2400 DPI.
Printer frame made by five-axis machining center, ensure the high precision of the whole machine.
Use special marble flat scale to debug lead rail straightness (within 0.02mm) and parallelism (0.01mm), to achieve accurate moving of carriage.
Stable and reliable
High-temperature tempering treated integral steel frame structure, which will not deform during long-distance transport and handling.
Using double rail steel frame beam structure, the carriage is more stable, achieving faster and smooth printing.
The beam and the whole frame are made by a large five-axis machining center, one-time processed, ensure high precision.
Easy-to-use and user-friendly designs
Automatic media thickness measurement function;
More convenient feeding system design;
Equipped with mute guide to effectively reduce noise;
Safety protection grating design to protect machine and personnel safety.
Double negative pressure system for color ink and white ink separately, delivering more stable ink supply.
Environmental protection
Eco-friendly UV curing ink which is VOC free, meeting environmental standards;
Sustainable economy
LED-UV ink curing system which has longer service life compared to mercury lamp curing, no excess heat, energy-saving, also efficient.
Variable ink droplet printing can effectively reduce ink consumption;
Ricoh Gen5 inkjet printhead, featured internal heating system, is high-performance, and it is very suitable for long-time working, 24 hours running. If maintain in good condition, it lifetime can reach about 5 years.
